    Automatic Bridge Multiblade Block Cutter with Max Blade Diameter 2800mm and Max Processing Length 3600mm for Granite Marble

    Ask Lasest Price
    Brand Name : Xianda Machinery
    Model Number : BTC-2200
    Certification : CCC, ISO, CE
    Price : To Be Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union
    Supply Ability : 1000 Sets/Year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Automatic Bridge Multiblade Block Cutter with Max Blade Diameter 2800mm and Max Processing Length 3600mm for Granite Marble

    Basic Info.

    Model NO.
    BTC-2200/2500/2800
    Usage
    Granite, Marble
    Application
    Machinery & Hardware, Stone Industry
    Source Voltage
    380V
    Automation
    Automatic
    Cutting Ability
    High Speed
    Control
    PLC
    Certification
    ISO
    Color
    Black and Yellow
    Max Blade Diameter
    2200mm/2500mm/2800mm
    Max Processing Length
    3000/3300/3600mm
    Max Processing Width
    2200mm
    Max Lifting Travel
    1350mm
    Main Motor
    45/55kw
    Gross Motor
    56/66kw
    Water Consumption
    15m³/H
    Gross Weight
    14000/14500/15000kgs
    Specification
    7350/7850x4500/4800x3400/3700mm
    Trademark
    XIANDA
    Origin
    Fujian, China
    HS Code
    84641090
    Production Capacity
    1000 Sets/Year

    Packaging & Delivery

    Package Size
    800.00cm * 480.00cm * 370.00cm
    Package Gross Weight
    15000.000kg

    Product Description

    multi-blade large stone block cutting machine marble granite block cutter

    Product Show

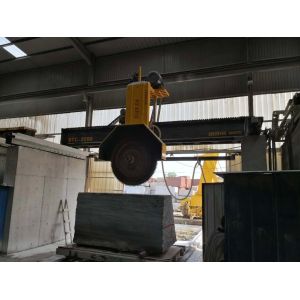

    Bridge Multiblade Block Cutter Granite Marble Block Cutting Machinery

    BTC-2500/2800 uses inverter to control left-right feeding adjusts the speed according to the stone material.It uses hydraulic lifting system(screw lifting system optional),forward-backward slicing uses high-precision screw nut driving,automatic slicing,main spare parts adopt imported good-quality materials;The block can be placed in the ground directly to save worktable and its maintenance costs;Thus the whole machine is featured as high cutting efficiency,high slicing precision,flatness of plate after cutting,high stability,easy-operating to suit specially cutting granite and marble block with high wave.

    ParameterUnitBTC-2200BTC-2500BTC-2800
    Max blade diametermmφ2200φ2500φ2800
    Max processing lengthmm360033003000
    Max processing widthmm220022002200
    Max lifting strokemm135013501350
    Main motorkw45/5545/5555
    Gross motorkw56/6656/6666
    Outline dimensionmm8000*4800*37008000*4800*37008000*4800x3700
    Water consumptionm³/h151515
    Gross weightkg140001450015000





    Factory Overviews

    Bridge Multiblade Block Cutter Granite Marble Block Cutting Machinery


    Certifications

    Bridge Multiblade Block Cutter Granite Marble Block Cutting Machinery


    Our Services


    We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

    32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

    Top 5 stone cutting machine manufacturer with ISO&CE certificate.

    Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

    We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

    After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

    We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
